10x20 Trade Show Booth: Layouts, Prices & 15 Design Ideas
A 10x20 trade show booth gives you 200 square feet: 20 feet of frontage and 10 feet of depth, enough for separate demo and meeting zones. In 2026, a 20-foot fabric or pop-up backwall typically costs about $1,300 to $2,800 to buy. Modular systems run about $8,000 to $25,000, and custom builds about $15,000 to $40,000. Turnkey rentals usually cost $7,000 to $18,000 per show. Below you'll find a full price table, how a 10x20 compares with a 10x10, the rules that still apply, five layouts and 15 design ideas you can hand to a builder.
What is a 10x20 trade show booth?

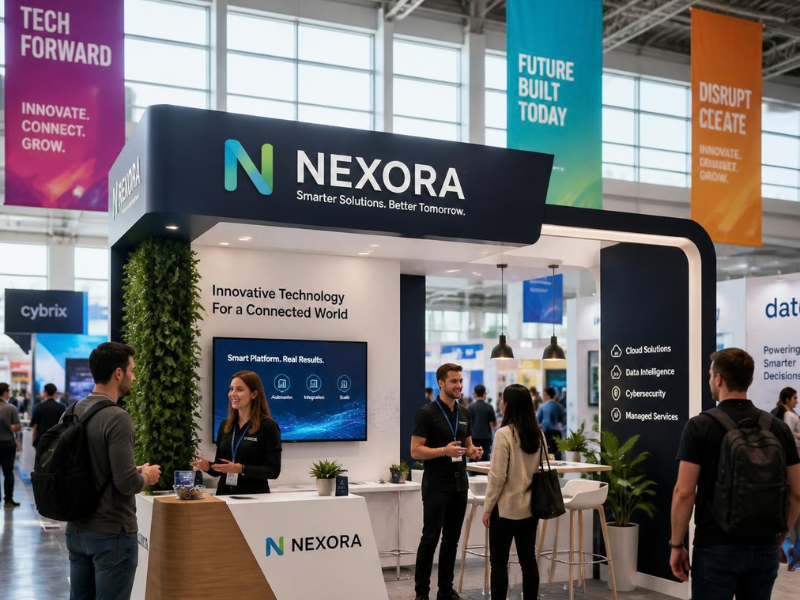

A 10x20 trade show booth is two standard 10x10 linear booths combined into one space, 20 feet wide and 10 feet deep. It sits in a row of inline booths with one side open to the aisle, or on the end of a row as a corner booth1. Industry guidelines treat it under the same linear booth rules as a 10x101.
The extra frontage is the real gain. You get twice the aisle exposure of a 10x10 and room to split the space into zones.
How much does a 10x20 trade show booth cost?
Cost depends on booth type and whether you buy or rent. These are typical 2026 ranges from published vendor prices, not quotes.
| Booth type | Buy (typical range) | Rent (typical range, per show) | Notes |
|---|---|---|---|
| Pop-up or tension fabric backwall (20 ft) | About $1,300–$2,8002, 3 | Rarely listed as a stand-alone rental | Tool-free setup; add counters separately |
| Portable multi-frame kit (backwall, counters, storage) | From about $3,2002 | Rarely listed as a stand-alone rental | Good step up from a 10x10 kit |
| Backlit kit | From about $5,7002 | Included in many turnkey rental packages | LED lightbox walls |
| Modular system | About $8,000–$25,0002, 4 | $7,000–$15,000 turnkey4, 5 | Reconfigures across sizes |
| Custom build or custom-designed rental | About $15,000–$40,0005, 6 | About $12,000–$22,000 for custom-designed packages6, 7 | Builder handles design and install |
How to read the table:
- "Turnkey" means different things. One rental guide puts a professional 10x20 rental at $7,500 to $18,000 for hardware, structure and basic local logistics, with graphics, furniture, carpet, drayage, electrical and cleaning quoted separately8. Other packages include design, graphics and installation7.
- Custom purchase often starts near double the rental price, according to one exhibit house6. Buying pays off when you'll reuse the booth across many shows.
Add booth space and show services
Booth space is a separate cost. GES puts the average for exhibit hall space at $100 to $150 per square foot9. For a 10x20, that is about $20,000 to $30,000 for space alone at a major show.
GES also notes total show costs often run about three times the space cost9. Freight and drayage add up too. One builder cites $1,500 to $5,000+ for drayage on a mid-size booth and $3,000 to $8,000 for round-trip cross-country freight5.
Rent or buy?
Rent if you exhibit in a 10x20 once or twice a year, or want a new look for each show. Buy a modular system if your calendar is steady, because some modular systems can be extended with added sections as you grow10. Get both numbers side by side; start with our trade show booth rental options and a purchase quote.
10x10 vs 10x20 booth: what changes
A 10x20 doubles your floor space and frontage, but not your height limits. Here is how the two sizes compare.
| 10x10 | 10x20 | |
|---|---|---|
| Floor area | 100 sq ft | 200 sq ft |
| Booth type (IAEE) | Linear | Two linear booths combined |
| Staff (at ~50 sq ft each) | About 211 | About 411 |
| Visitors at once | 2–412 | 6–1012 |
| Typical fixtures | 1 backdrop, 1 counter, 1 small stand12 | 1 large or 2 backdrops, 2 counters, shelving, small seating area12 |
| Space at $100–$150/sq ft | About $10,000–$15,0009 | About $20,000–$30,0009 |
| Turnkey rental per show | About $3,000–$7,5004, 5 | About $7,000–$15,0004, 5 |
| Custom build to buy | About $8,000–$20,0005 | About $15,000–$40,0005 |
| Back wall / front-half height | 8 ft / 4 ft1 | 8 ft / 4 ft1 |
| Hanging sign allowed | No1 | No1 |
Choose a 10x20 when you need to run a demo and hold conversations at the same time, staff more than two people, or show a product line instead of one hero item. For the 10x10 details, see our 10x10 trade show booth guide. For every standard size including 20x20 islands, see the trade show booth sizes guide.
10x20 booth rules: height and line of sight
Most US shows follow the IAEE Guidelines for Display Rules and Regulations. For a 10x20, the linear booth rules apply1:
- Back wall: maximum height of 8 feet is generally specified.
- Line of sight: the full 8 feet is allowed only in the rear half of the booth. Everything in the front half, the 5 feet nearest the aisle, is limited to 4 feet.
- The exception doesn't cover a 10x20. When three or more linear booths are combined, the 4-foot limit applies only within 10 feet of a neighboring booth. A 10x20 is two booths, so the 4-foot rule covers the whole front half.
- No hanging signs for inline, corner or perimeter booths.
- Lighting should point into your booth, not at neighbors or the aisle.
Your show's exhibitor manual overrides these guidelines, so read it before you approve a design.
5 layout options for a 10x20 booth
Each layout keeps anything taller than 4 feet in the rear 5 feet.
- Full back wall, center counter. A 20-foot back wall with one counter centered near the aisle. Simple, symmetrical and easy to staff.
- Two zones. Split the booth in half: demo or product on one side, a small meeting area on the other. Use the back wall graphics to label each zone.
- Open center, rear towers. Put tall towers or shelving in the two rear corners and keep the middle open. Visitors walk straight in instead of stopping at a counter.
- Mini theater. Mount a large screen on the back wall and place three or four stools facing it for scheduled demos. Staff greet from the side.
- Corner 10x20. On a corner, run a short side wall along your neighbor and face graphics and counters toward both aisles. Keep the side wall under 4 feet in the front half.
15 10x20 trade show booth ideas
These 10x20 trade show booth ideas work with the linear rules above. Mix two or three; using all 15 in one booth will crowd it.
One backlit wall, one message
Run a 20-foot backlit SEG wall with a single headline and your logo. Light makes the wall readable from down the aisle.
Problem-to-solution storytelling
Split the back wall into two panels: the customer's problem on the left, your answer on the right. Visitors read it as they walk past.
Demo counter at the aisle
Put a product demo on a counter near the front, under 4 feet. People stop for things that move.
Video wall at eye level
Mount one large monitor or an LED panel in the center of the back wall. Loop a 30-second product story with captions, since show floors are loud.
Meeting pod
Place a high-top table and two stools in a rear corner for booked meetings. It gives qualified buyers a place to sit down and talk specifics.
Curved or serpentine fabric wall
A curved 20-foot fabric wall breaks up the flat row of booths around you. Curved and serpentine 20-foot tension fabric frames are sold off the shelf3.
Rear-corner tower for height
Add a tower up to 8 feet in a rear corner with your logo on top. It adds height without breaking the front-half limit.
Product wall with shelving
Build shelves into the back wall to show a product line. Light each shelf so products read clearly.
Charging counter
A counter with built-in phone charging gives visitors a reason to stay a few minutes. Your staff get time to qualify them.
Branded flooring
Custom-printed carpet or tiles mark your booth edge and carry your colors to the aisle. It is one of the few surfaces not limited by height.
Layered lighting
Combine backlighting with arm lights or spots pointed into the booth, never at the aisle1. See our trade show lighting setups guide.
Touchscreen kiosk for lead capture
A kiosk runs a short quiz or product finder and captures contact details. It keeps lead capture moving when staff are busy.
Hidden storage closet
Build a small closet into the back wall for bags, stock and literature. Some modular kits include one13.
Modular parts that also fit a 10x10
Specify a modular system that can split into a 10x10 set for smaller shows. Some kit lines are sold as expandable from 10x10 to 10x20 with added sections10.
Custom look without ownership
If you want a one-off build for a flagship show, rent a custom-designed booth instead of buying. Builders can design a custom booth to your brand, then quote it as a rental or purchase.
Next step: compare 10x20 designs and prices
Pick the two or three ideas that fit your goals, choose a layout, and set a budget that includes space, services and freight. Then ask several builders to design against the same brief so you can compare like for like.
